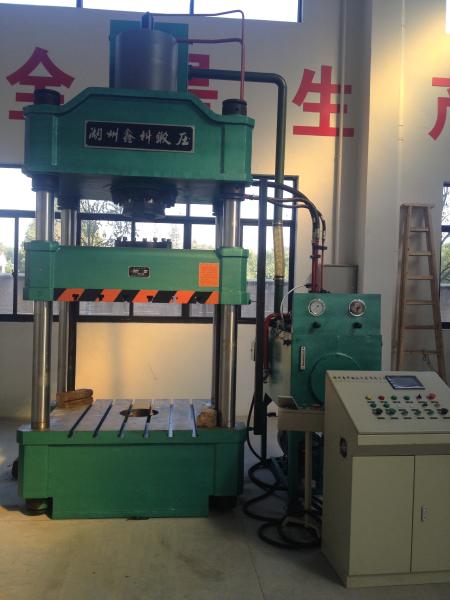

Auto Deep Drawing Hydraulic Blanking Press , Fabrication Hydraulic Press 315 Ton

Name: Auto Deep Drawing Hydraulic Blanking Press Fabrication Hydraulic Press 315 Ton
Brand: XINKE
Price: 5 USD

Brand Name : XINKE

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : USD 5,000-500,000 Per Unit

Payment Terms : L/C, T/T

Supply Ability : 10 units per month

Delivery Time : 60-150 working days

Packaging Details : Wooden case, and waterproof cover

Frame : Four columns

Drive : Oil hydraulic

Application : Drawing

Contact Now

Y32 315T Four-Column Hydraulic Press For Deep Drawing

Features:

Optimized by computer design, 3-beam, 4-column frame.
Integrated cartridge valve is adopted. Electro-hydraulic valve is used for the presses of force below 500T. Tiny hydraulic impact, less piping connections.
Independent electrical & electronic control system
Button-operation. Mode: Manual, automatic
Stroke, pressing force, pressure maintaining can be preset
Working force is adjustable
Servo system for saving electric power

Application:

Suitable for the process of drawing, bending, flanging, cold extrusion, punching, trimming of sheet metal as well as straightening, pressing fitting, and molding of thermal plastic and metal powder

Accessories for option:

Buffering device for punching and trimming

Oil heating device

Displacement sensor

Touch-screen LCD

PLC

Floating guide rail for die exchange

Lighting device

Quick-change device of die

Light curtain safety protection device

Technical Data:

Item		Unit	Y32-315
Nominal force		kN	3150
Ejecting Force		kN	1000
Return force		kN	450
Max. Pressure of Medium		MPa	25
Stroke of Slider		mm	800
Stroke of Ejector		mm	300
The Max. Opening Daylight		mm	1250
Speed of Slider	Descend	mm/s	150
	Working	mm/s	8/20
	Return	mm/s	125
Speed of Ejector	Ejecting	mm/s	65
Speed of Ejector	Return	mm/s	150
Size of worktable	L.R.	mm	1260
Size of worktable	F.B.	mm	1200
Overall size of machine	L.R.	mm	2840
	F.B.	mm	2000
	Height above the floor	mm	4175
Worktable height above the floor		mm	650
Motor power		kW	22
Weight of Machine		t	13

Auto Deep Drawing Hydraulic Blanking Press , Fabrication Hydraulic Press 315 Ton

Product Tags:

industrial hydraulic press machine

hydraulic steel press

Quality Auto Deep Drawing Hydraulic Blanking Press , Fabrication Hydraulic Press 315 Ton wholesale

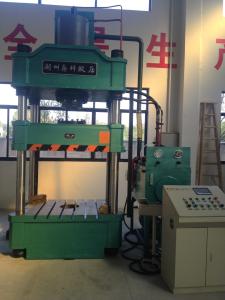

Auto Deep Drawing Hydraulic Blanking Press , Fabrication Hydraulic Press 315 Ton Images
